Quick start
This guide is valid for all versions 1.6 and later.

Preliminaries

We recommend that you follow this guide for proper use from the board.

SlimStack connectors

It is important that all SlimStack connectors in the bottom layer are clean to prevent board malfunctions/short circuits.
It is recommended that you use an ESD brush to clean the connectors.

Module Mounting/Dismounting

Mounting/Dismounting a module is very simple. As written in the introduction there are two types of modules M0 and M1 that are differentiated by their size and the number of SlimStack connectors.
Type
Size
Connector
M0
10x20mm
2
M1
20x20mm
4

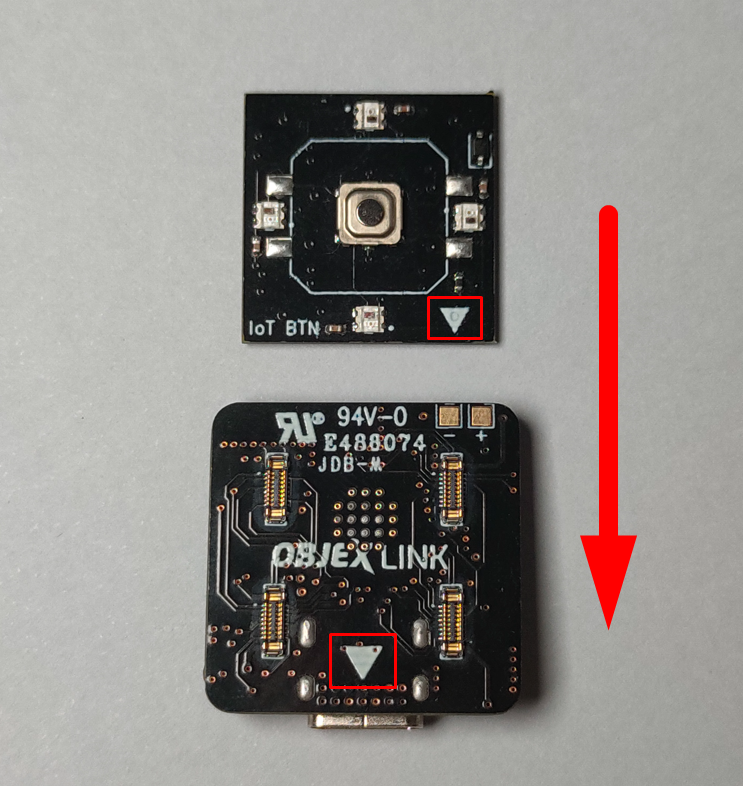

Before mounting a module follow the direction of the arrows!

Both types of modules mount/dismount the same way, here is an example with an M1 module - The same method applies to flexible cables.

Mounting

The module has been installed correctly, it's time to try it out!

Dismounting

The Mounting/Dismounting of an M0 module is the same as the M1 module.
